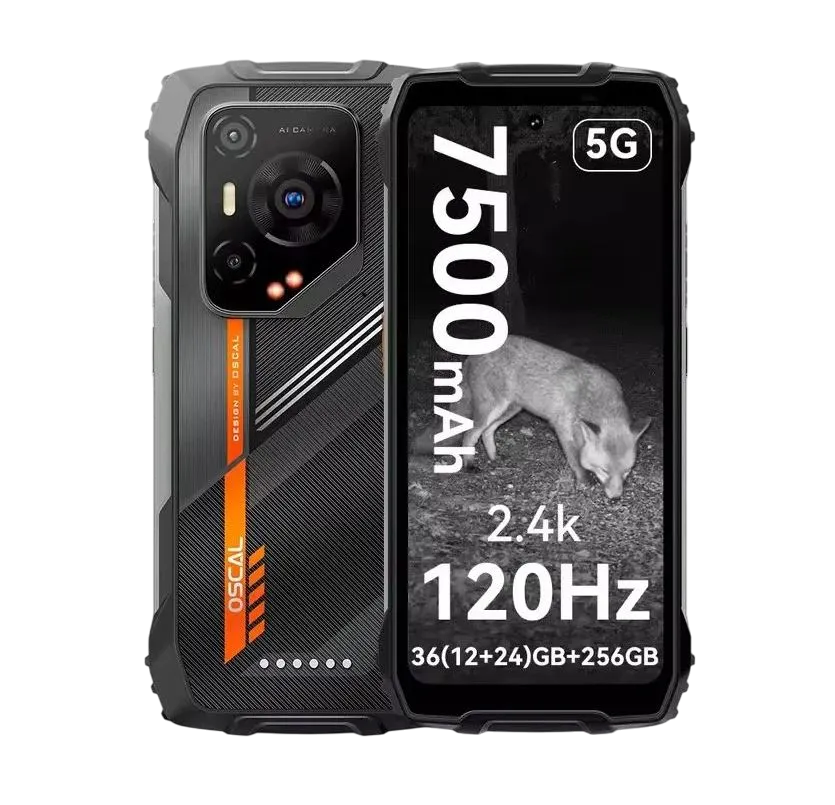

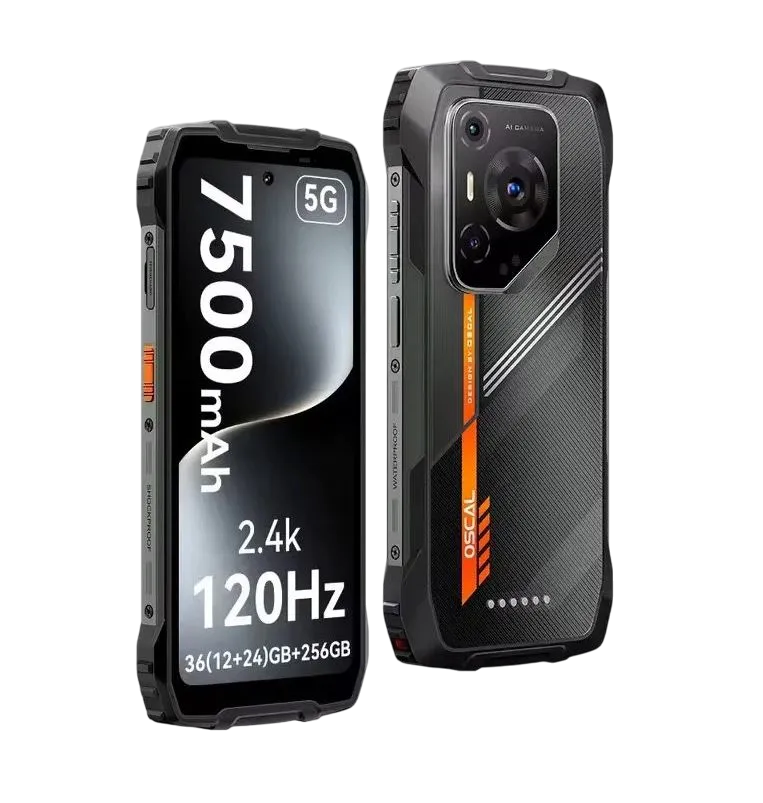

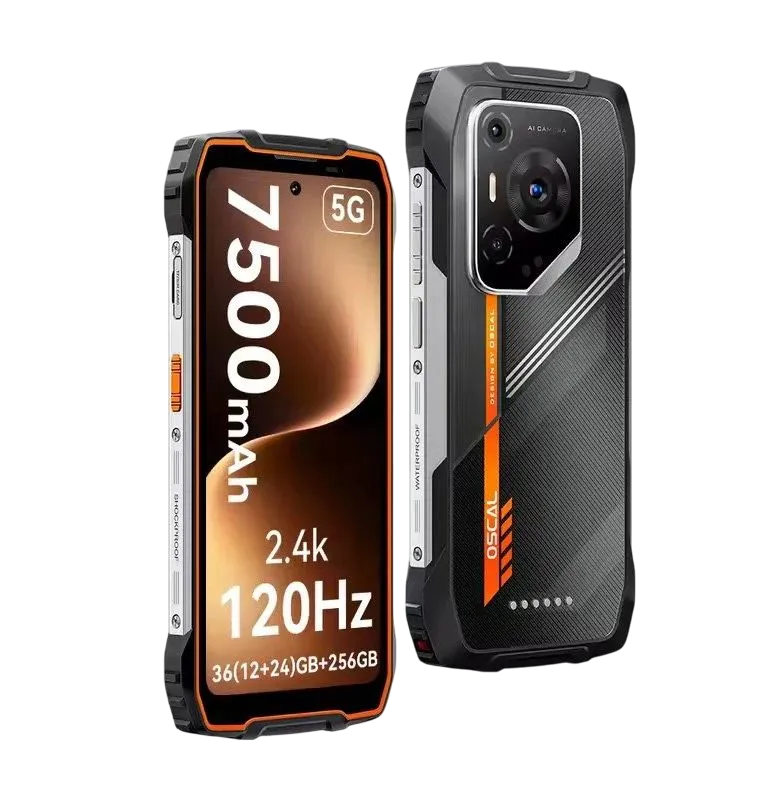

Oscal Pilot 3
- 2025, June 16
- 357g, 14.5mm thickness
- Android 15, DokeOS 4.1
- 256GB storage, microSDXC
-
6.78"1080x2460 pixels
50MP
1440p
12GB RAM
Dimensity 6300
7500mAh
33W
Network
| Technology | GSM / CDMA / HSPA / LTE / 5G |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 |
| 3G Bands | HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G Bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 66 |
| 5G Bands | 1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 77, 78, 79 |
| Speed | HSPA, LTE, 5G |
Launch
| Announced | 16 June, 2025 |
| Status | Exp. release 2025, June 16 |
Body
| Dimensions | 182.2 x 86 x 14.5 mm (7.17 x 3.39 x 0.57 in) |
| Weight | 357 g (12.59 oz) |
| Build | MIL-STD-810H military standards |
| SIM | Nano-SIM + Nano-SIM |
Display
| Type | IPS LCD, 120Hz, 750 nits |
| Size | 6.78 inches, 109.2 cm2 (~69.7% screen-to-body ratio) |
| Resolution | 1080 x 2460 pixels (~396 ppi density) |
| Protection | Corning Gorilla Glass 5 |
Platform
| OS | Android 15, DokeOS 4.1 |
| Chipset | Mediatek Dimensity 6300 (6 nm) |
| CPU | Octa-core (2x2.4 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55) |
| GPU | Mali-G57 MC2 |
Memory
| Card Slot | microSDXC (uses shared SIM slot) |
| Internal | 256GB 12GB RAM |
Main Camera
| Dual | 50 MP, f/1.8, (wide), 1/2.76", PDAF 20 MP, f/2.0, (night vision), 1/2.8", 2 infrared night vision lights 2 MP, (depth) |
| Video | 1440p@30fps, 1080p@30fps |
| Features | LED flash, HDR, panorama |
Selfie Camera
| Single | 32 MP, f/2.2, (wide), 1/3.1" |
| Video | HDR |
| Features | 1080p@30fps |
Sound
| Loud Speaker | Yes |
| 3.5mm jack | Yes |
Comms
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band |
| Blutooth | 5.2, A2DP, LE |
| Positioning | GPS, GALILEO, GLONASS, BDS, QZSS |
| NFC | Yes |
| Radio | FM radio |
| USB | USB Type-C, OTG |
Battery
| Type | Li-Ion 7500 mAh |
| Charging | 33W wired 6W reverse wired |
Features
| Sensors | Fingerprint (side-mounted), accelerometer, gyro, proximity, compass |
MISC
| Colors | Black, Orange |
| Disclaimer: We cannot guarantee that the information on this page is 100% correct. |
FAQs
This device doesn't have an official waterproof rating.
Yes, this device supports 5G networks in USA.
Oscal Pilot 3 comes with Android 15, DokeOS 4.1 out of the box.
No, this device doesn't support wireless charging.
